Novotechnik

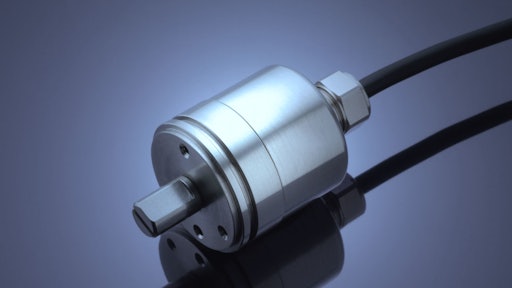

Novotechnik U.S. announces the Vert-X 3700 Series of angle sensors housed in a sealed stainless steel housing.
- Uses Hall effect, non-contact principle
- Designed for rugged applications where high humidity, dampness, dust and/or vibrations are expected
- Accuracy to 0.35 degrees and repeatability to 0.05%
- Measurement range up to 0-360 degrees
- Sealing to IP68
- Up to 14-bit resolution and ±0.1% linearity
- Some models are available with full redundancy
- Can be ordered pre-programmed for a specific application’s range, within 10-degree steps, to apply full resolution and accuracy over that electrical angle range
- Version available where customers can specify index points, sense of rotation- cw or ccw, electrical range and switch outputs
- Operating temperature range is -40-85 C (-40-185 F)
- Shock and vibration resistant to 50 and 20 g respectively
- Outputs include 4-20 mA, 0.1-10V, 0.5-4.5V, ratiometric voltage, PWM and SPI
